Strength & Mechanical Testing Equipment

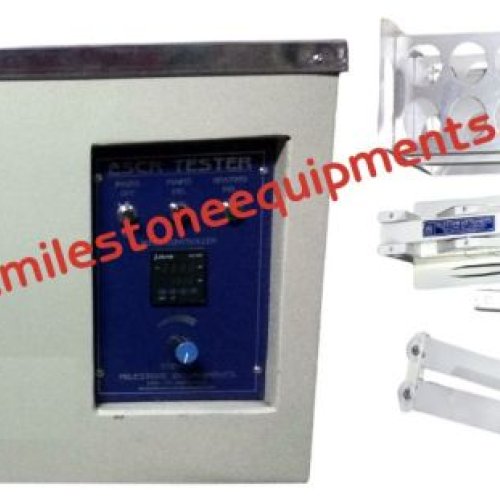

ESCR testing is used to test bending the test specimens and placing them in a holding clamp. The clamp and specimens are then placed in a test tube and immersed in reagent. The test tube is sealed and placed in a constant-temperature bath. Reference Standard ASTM D 1693

Technical details

• Inner bath size: 12" X 12" X 14" (08 tubes), 20" X 20" X 15" (16 tubes),

• MOC: Inner SS304 Outer MS.

• Temperature Controller: Microprocessor based PID

• Temperature Range: Ambient to 100 °C

• Resolution: 0.1 °C.

• Accessories: Test tube & rubber corks 6 nos. each.

  • Sample Bending tool: 01 No,

  • Sample Transferring tool: 01 No.

  • "C" Channel: 06 No's

  • Aluminium foil: 1 No each.

  • Sample Cutting Die: 1 No Each

• Power consumption: 230 VAC/ 60 Hz.

• Power: 1.25 kW or above

• Paint: Powder coated

Testing machines are precisely manufactured using optimum quality components and progressive technology in line with industry norms. Moreover, these testing machines are checked against different quality measures so as to ensure their quality. We deliver these testing machines from our end after testing them against various parameters.

1. The standard 8 mm dia specimen is held in special holders at its ends

2. The bending moment is applied with the lever system and can be easily changed by moving a weight over the lever

3. A complete cycle of reversed stresses in all fibers of the specimen is produced during each revolution

4. Total number of revolution at which the specimen fails are recorded by a mechanical counter

5. An interlocking system puts off the motor at specimen failure

6. 6 digit electronic counter instead of mechanical counter can be supplied at additional price

Flexural rigidity stiffness tester, specimen is slid along a table top parallel to its long dimension, until its leading edge projects from the edge. The overhang length is measured when the tip of the specimen is depressed under its own mass to the point where the line joining the top to the edge of the platform makes a 0.724 radians (41.5°) angle with the horizontal. From the measured length both bending length and flexural rigidity are calculated.

The Heat Deflection Temperature Tester consists of a specimen support, an immersion bath, a set of weights under deflection –measuring device. this instrument is mostly used in deflection test of plastic under load and temperature.

Izod Impact Tester is manufactured as per ASTM D-256. The method of determining impact strength of rigid plastics or reinforced plastics. A notched sample is generally used to determine impact strength. The test determines the amount of energy absorbed by a material during factual.

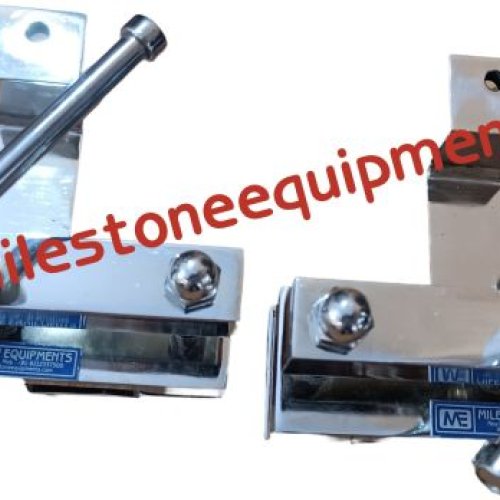

This test measures the ability of the geotextile to distribute concentrated loads. Specially devised clamps (25 mm wide) with a gauge length of 100 mm are placed across 200 mm square samples or 200 mm x100 mm samples. The sample is then subjected to tension at a specified rate until failure occurs. It is widely used by manufacturers as a quality control tool and as such is the most commonly reported tensile strength value. It can also be used for relative comparisons between geotextiles of the same type.

Meets: - ASTM D-4632,
