75,000.00 / piece
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Voltage | 110-220V |
| Country of Origin | India |
| Material | Metal & Plastic |
| Click to view more | |
Product Details
Size
14 Cm Diameter, 10 Cm Length
Rods Diameter
4 Mm
Spacing
Equal Spacing
Specimen Positioning
Geotextile Specimen Held By Rods
Troughs
Two Troughs
Troughs Capacity
Filled With Distilled Water
Water Level
20 Mm Below Drum Axis
Clearance
40 Mm Between Trough And Geotextile
Rotation
Motor Drive, Change Gear Assembly
Rotation Speed
20 Rpm
Rotation Axis
Horizontal Axis
Rotation Facilitation
Free Rotation
Speed
20 Rpm
Brand Name
Milestone
Warranty
1 Year

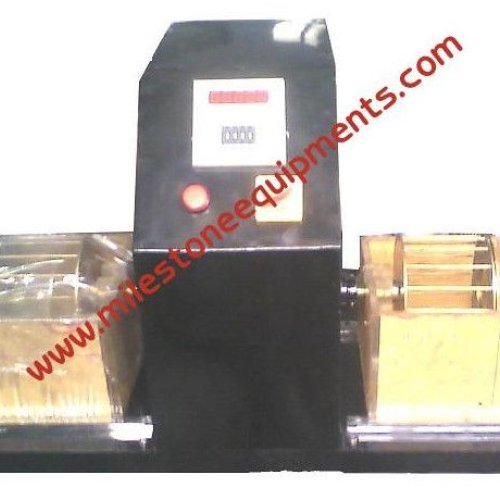

The apparatus consists of two test drums of 14 cm dia and 10 cm effective length with 16 nos. of 4 mm dia rods provided circumferentially at equal spacing to hold the geotextile specimen in position. Two troughs to contain the test drums are supported on horizontal axis, facilitating free rotation and capable of being filled with distilled water to a level of 20 mm below the drum axis. The clearance between the trough and the geotextile could be maintained at about 40 mm. The apparatus is provided with a motor drive and a change gear assembly to enable rotation of the drums at a speed of 20 rpm.
