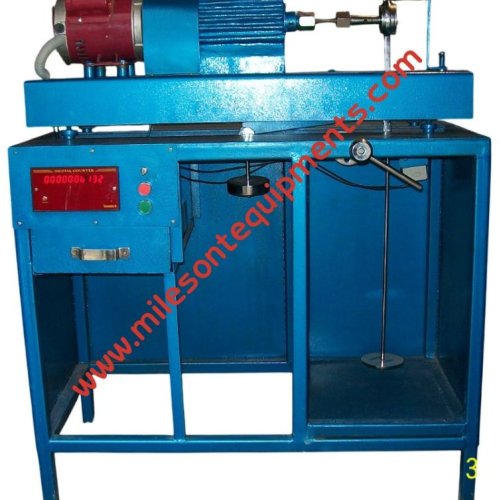

Fatigue Testing Machine

Testing machines are precisely manufactured using optimum quality components and progressive technology in line with industry norms. Moreover, these testing machines are checked against different quality measures so as to ensure their quality. We deliver these testing machines from our end after testing them against various parameters.

1. The standard 8 mm dia specimen is held in special holders at its ends

2. The bending moment is applied with the lever system and can be easily changed by moving a weight over the lever

3. A complete cycle of reversed stresses in all fibers of the specimen is produced during each revolution

4. Total number of revolution at which the specimen fails are recorded by a mechanical counter

5. An interlocking system puts off the motor at specimen failure

6. 6 digit electronic counter instead of mechanical counter can be supplied at additional price
